Nowadays working with databases is an integral part of programming. Android allows applying the database SQLite for storing information on devices. Standard ways of using it are uncomfortable. Working with SQLite sometimes makes code difficult for understanding, and writing of some SQL queries can take too much time. Using ORM partially solves some problems, but today we have an alternative way, that is Realm.

Realm is a mobile database and a good substitute for SQLite (Android) & CoreData (IOS).

Prerequisites

  • Realm is supported in Android only, not available for Java at the moment.
  • Version of Android Studio > = 0.8.6
  • JDK version >=7
  • Android API Level minimum 9 (Android 2.3 Gingerbread)

Installation

Add compile 'io.realm:realm-android:0.83.0' in your build.gradle and sync a project. Or you can download a realm-VERSION.jar and add it into app/libs.

Models

If you want a class to be stored in Realm, it should extend from RealmObject. Realm supports the following field types: boolean, byte, short, ìnt, long, float, double, String, Date. Moreover, subclasses of RealmObject and RealmList<? extends RealmObject> support model relationships.

The boxed types Boolean, Byte, Short, Integer, Long, Float, and Double can also be used in model classes. With their help, you can set the value of a field to null.

Annotations

@Required - tells Realm to enforce checks that disallow null values.
@Ignore - supposes that a field should not be persisted to disk.
@Index - will add a search index to the field. Due to these queries will be faster, although inserts will become slower and the data file will get larger.
@PrimaryKey - supposes that the field is indexed.


Start Using Realm

Initialize Realm in Application:

public class MyApplication extends Application {
@Override
public void onCreate() {
super.onCreate();
RealmConfiguration config = new RealmConfiguration.Builder(context).build();
Realm.setDefaultConfiguration(config);
}
}

Initialize Realm in Activity:

public class MyActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Realm realm = Realm.getDefaultInstance();
}
}

Writing in the Database

If you want to write something in the database you just need to call:

Realm realm = Realm.getInstance(this);
realm.beginTransaction();
//... add or update objects here ...
realm.commitTransaction();
view raw gistfile1.txt hosted with ❤ by GitHub

You always have an opportunity to cancel your transactions, just call:

realm.cancelTransaction();

Creating Objects

If you want to save an object in the Realm database, the class of that object should extend from RealmObject:

public class University extends RealmObject {
@Index
private int id;
private String name;
// Standard getters & setters generated by your IDE…
}
Realm realm = Realm.getInstance(this);
realm.beginTransaction();
University university = realm.createObject(University.class); // Create a new object
user.setName("John");
realm.commitTransaction();
view raw gistfile1.txt hosted with ❤ by GitHub

Practical Use

Let’s see how this database can be applied to real Android app development. MLSDev developers made an Android app using Realm. You will find it in our GitHub repository to learn more about its integration.

One of the app’s features is to add and delete universities, as well as add students to and delete them from these universities. This function is important for us in regards to the topic. In the article, we will show you only the main parts of the code.

So, two classes are required (University and Student)

public class Student extends RealmObject {
@PrimaryKey
private String id;
@Required
private String name;
@Required
private Date birthday;
@Required
private String email;
// getters and setters
}
public class University extends RealmObject {
@PrimaryKey
private String id;
@Required
private String name;
private RealmList students;
// getters and setters
}
view raw gistfile1.txt hosted with ❤ by GitHub

Then create a class called “module” and include the University and Student classes in the annotation.

@RealmModule(classes = {Student.class, University.class})
public class SimpleRealmModule {}
view raw gistfile1.txt hosted with ❤ by GitHub

In the Application class initialize the Realm database using the previous class.

public class SimpleRealmApp extends Application {
private static SimpleRealmApp instance;
@Override
public void onCreate() {
super.onCreate();
instance = this;
RealmConfiguration config = new RealmConfiguration.Builder(getApplicationContext()).setModules(new SimpleRealmModule()).build();
Realm.setDefaultConfiguration(config);
}
public static SimpleRealmApp getInstance() {
return instance;
}
}
view raw gistfile1.txt hosted with ❤ by GitHub

And now the time for the most interesting part has come. We will create two classes (UniversityRepository and StudentRepository) and write queries.

UniversityRepositry will be able to add a university, delete a university by id, get a university by id from the database etc.

public class UniversityRepository implements IUniversityRepository {
@Override
public void addUniversity(University university, OnAddUniversityCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
University u = realm.createObject(University.class);
u.setId(UUID.randomUUID().toString());
u.setName(university.getName());
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void deleteUniversityById(String Id, OnDeleteUniversityCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
University university = realm.where(University.class).equalTo(RealmTable.ID, Id).findFirst();
university.removeFromRealm();
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void deleteUniversityByPosition(int position, OnDeleteUniversityCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
RealmQuery query = realm.where(University.class);
RealmResults results = query.findAll();
results.remove(position);
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void getUniversityById(String id, OnGetUniversityByIdCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
University result = realm.where(University.class).equalTo(RealmTable.ID, id).findFirst();
if (callback != null)
callback.onSuccess(result);
}
@Override
public void getAllUniversities(OnGetAllUniversityCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
RealmQuery query = realm.where(University.class);
RealmResults results = query.findAll();
if (callback != null)
callback.onSuccess(results);
}
}
view raw gistfile1.txt hosted with ❤ by GitHub

The following screens display what you get from the code:

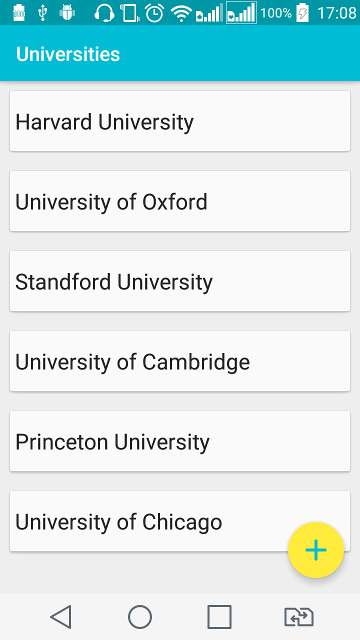

The List of Universities
The List of Universities

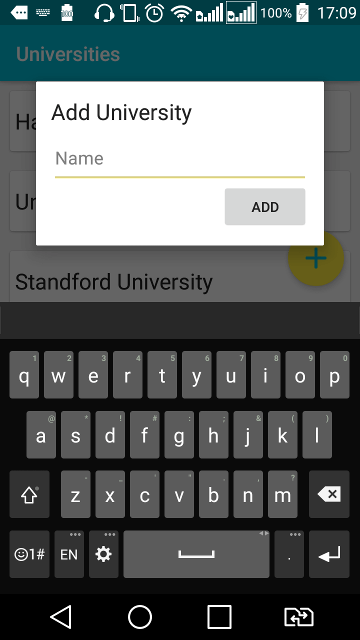

Adding a New University
Adding a New University

On the first screen, you can see the list of all universities. On the second screen, you can add a new university.

StudentRepositry will be able to add a student to a university, delete a student by id, get a student by id from the database etc.

public class StudentRepository implements IStudentRepository {
@Override
public void addStudent(Student student, OnSaveStudentCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
Student realmStudent = realm.createObject(Student.class);
realmStudent.setId(UUID.randomUUID().toString());
realmStudent.setName(student.getName());
realmStudent.setBirthday(student.getBirthday());
realmStudent.setEmail(student.getEmail());
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void addStudentByUniversityId(Student student, String universityId, OnSaveStudentCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
Student realmStudent = realm.createObject(Student.class);
realmStudent.setId(UUID.randomUUID().toString());
realmStudent.setName(student.getName());
realmStudent.setEmail(student.getEmail());
realmStudent.setBirthday(student.getBirthday());
University university = realm.where(University.class).equalTo(RealmTable.ID, universityId).findFirst();
university.getStudents().add(realmStudent);
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void deleteStudentById(String id, OnDeleteStudentCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
Student result = realm.where(Student.class).equalTo(RealmTable.ID, id).findFirst();
result.removeFromRealm();
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void deleteStudentByPosition(int position, OnDeleteStudentCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
realm.beginTransaction();
RealmQuery query = realm.where(Student.class);
RealmResults results = query.findAll();
results.remove(position);
realm.commitTransaction();
if (callback != null)
callback.onSuccess();
}
@Override
public void getAllStudents(OnGetAllStudentsCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
RealmResults results = realm.where(Student.class).findAll();
if (callback != null)
callback.onSuccess(results);
}
@Override
public void getAllStudentsByUniversityId(String id, OnGetStudentsCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
University university = realm.where(University.class).equalTo(RealmTable.ID, id).findFirst();
RealmList students = university.getStudents();
if (callback != null)
callback.onSuccess(students);
}
@Override
public void getStudentById(String id, OnGetStudentByIdCallback callback) {
Realm realm = Realm.getInstance(SimpleRealmApp.getInstance());
Student student = realm.where(Student.class).equalTo(RealmTable.ID, id).findFirst();
if (callback != null)
callback.onSuccess(student);
}
}
view raw gistfile1.txt hosted with ❤ by GitHub

This is what you will see on the screens:

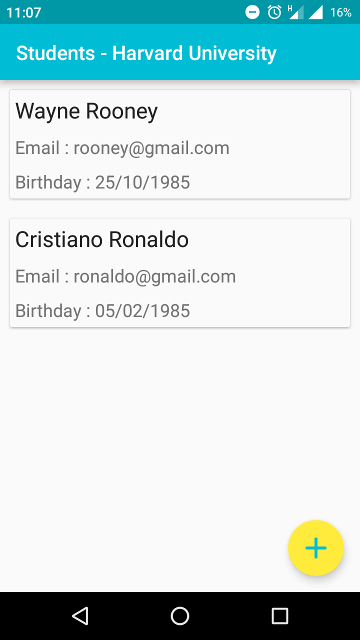

The List of Students
The List of Students

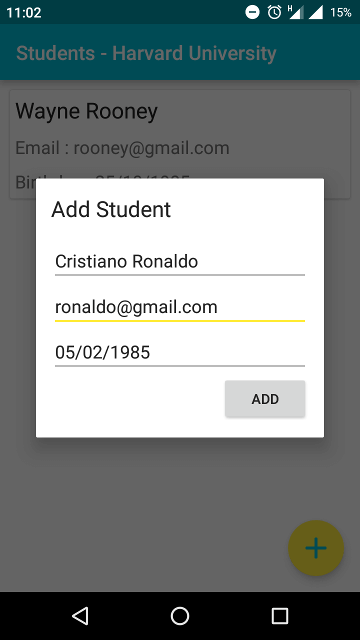

Adding a New Student
Adding a New Student

The first screen displays the list of all students of a chosen university. On the second one, you can add a new student.

As you could notice, it is very easy to write queries in Realm. Before each transaction, you should call

realm.beginTransaction();

and after it, you should call

realm.commitTransaction();

You can also go to the official Realm website to learn more about queries.

Bad and Good Impressions of Working with Realm

Bad impressions:

  • ID for objects cannot be automatically generated.
  • You can have only getter and setter methods in a class. This means you cannot override the methods hashcode(); or equals();

Good impressions:

  • An easy way to perform queries and transactions asynchronously.
  • All fetches (including queries) are lazy in Realm.

  • An easy way to build queries (just call existing Realm methods).
  • Possibility to run the Realm database in-Memory.
  • Possibility to use Realm objects across threads.
  • More information is in the official documentation.
